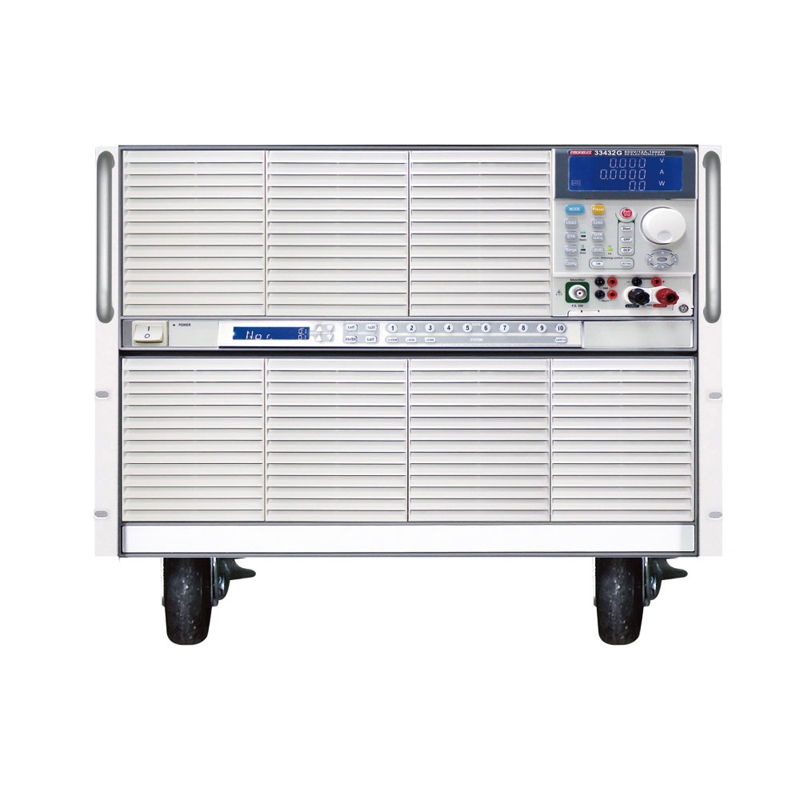

33432G High Power LED DC Electronic Load Simulator 600V, 24A, 3600W

Description

Each 33430G Series has its own control and display panel, LED/CC/CR/CV/CP/ Dynamic modes, panel with 150 sets Store/Recall memory which provides load set-up more efficiently，also can be controlled intranet via RS232、Ethernet、USB and GPIB interface.

Short circuit test by external relay ( there is an optional fixture for short ), Short Time can be set and Short Voltage can be measured.

Built-in dimming control signal output is for PWM dimming test of LED driver.

Simulate LED forword Bias voltage (Vd) and Resistance (Rd).

Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display “ + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.

150 sets test parameter and status storage function can call the storage memory real time in accordance with the auto sequence requirement.

Features
LED mode load for LED Power Driver test.

CC, CR, CV, CP, LED and Dynamic mode.

Simulate LED Forward Bias Voltage (Vd) and Resistance (Rd).

Not only CC, CR, and CP mode have parallel operation functions, but CV mode also has parallel operation functions.

Fast Response for PWM dimming test.

Built-in dimming control signal for PWM dimming test.

Short circuit test by external relay (built-in short relay driver circuit).

5 digital V / A / W Meter.

Protections against V, I, W, and ℃.

Optional Interface：GPIB、RS232、USB、LAN.

New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads

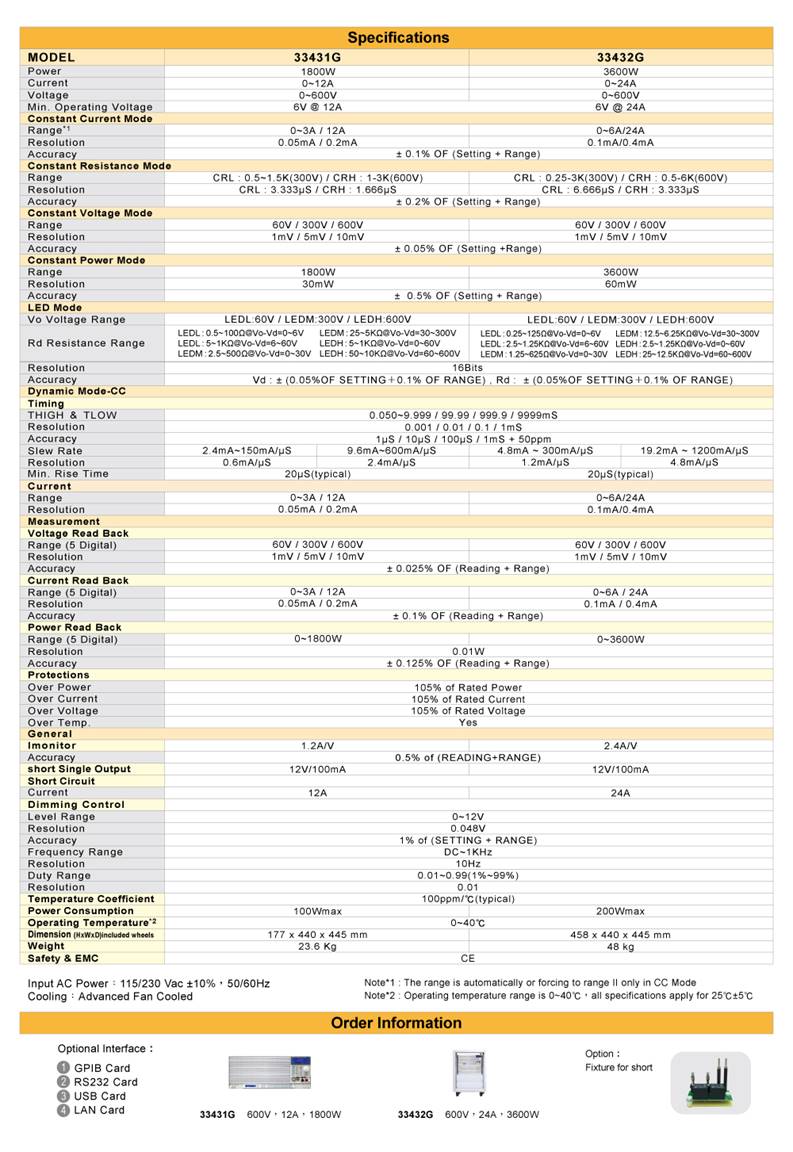

Specifications
